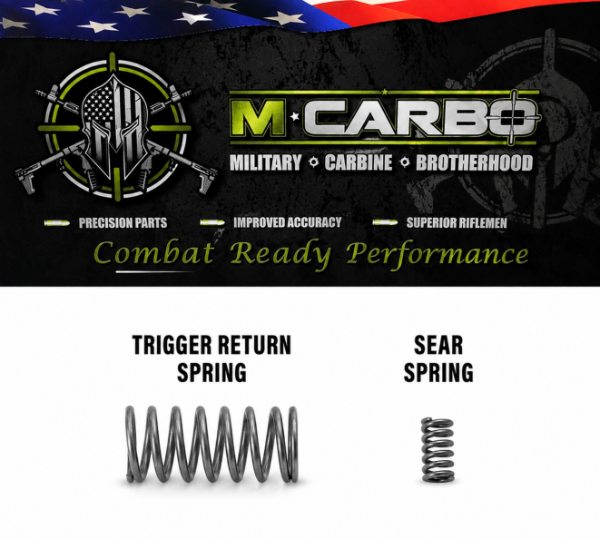

Winchester Model 70 Trigger Spring Kit (Before 2008)
- Custom Lighter Trigger Return Spring
Winchester Model 70 Trigger Spring Kit (After 2008):
- Custom Lighter Trigger Return Spring
- Custom Lighter Sear Spring
M*CARBO proudly presents its American-made Winchester Model 70 Trigger Spring Kit. Designed to significantly reduce your trigger pull weight by at least ~50%, this product promises a lighter and more consistent trigger pull for your firearm.
Considering a Winchester Model 70 trigger adjustment? Our custom-designed trigger spring kit offers the optimal upgrade for your Winchester Model 70 trigger. With an easy installation process, which typically takes between 10-15 minutes, you can achieve improved performance. Even better, our installation video, presented by our Company President and a Former Special Forces Operator, guides you through each step of the process, ensuring seamless Winchester Model 70 trigger disassembly and installation.
While some may opt for a Winchester Model 70 Jewell trigger, our trigger spring kit offers a compelling alternative. Before investing in pricier options, explore the benefits of the M*CARBO Winchester Model 70 trigger spring. In terms of performance, our product rivals the acclaimed Timney Winchester Model 70 trigger, but at a fraction of the cost. Why pay $150+ for a Timney trigger Winchester Model 70 product when our Winchester Model 70 trigger job provides comparable results?
This trigger kit is compatible with all Winchester Model 70 rifles ever produced.
As a testament to our dedication to Winchester enthusiasts, M*CARBO is honored to manufacture parts for the Winchester Model 70 MOA trigger.
Winchester Model 70 Owners Manual & Exploded View
If you're getting the Winchester Model 70 Trigger Spring Kit, then you might find the following Winchester Model 70
Resources useful in further enhancing your firearm. Download the Winchester Model 70 Owners Manual or Winchester
Model 70 Exploded View.
Check out the Winchester Model 70 pre 64 serial numbers list below.
Print or Download the Winchester Model 70 Serial Number Lookup
Records for rifles produced after 1992 have not been released. However you can call
Winchester Firearms directly to inquire about the date of production on your rifle. Winchester can be reached
directly at 800-333-3288.
Drop Tested and Approved:
Winchester Model 70 Trigger Spring Kit is drop Tested according to SAAMI Standard Z299.5 rating (12" & 48").
Tested and Approved:
The Winchester Model 70 Trigger Spring Kit has been tested repeatedly to ensure reliable operation and safety.
ATTENTION:
You must be 18 yrs of age to purchase. We advise that all parts purchased from our inventory be installed and inspected by a qualified gunsmith. Modifying your weapon may be prohibited in your state. Do not modify your sear or hammer engagement surfaces, with or without the Winchester Model 70 Trigger Spring Kit. Before installing please be sure to check all local state and federal laws. By installing this part you agree to take full responsibility for any and all legal, health and warranty consequences that may be incurred.
ATTENTION:
You must be 18 yrs of age to purchase. We advise that all parts purchased from our inventory be installed and inspected by a qualified gunsmith. Modifying your weapon may be prohibited in your state. Do not modify your sear or hammer engagement surfaces, with or without the Winchester Model 70 Trigger Upgrade. Before installing please be sure to check all local state and federal laws. By installing this part you agree to take full responsibility for any and all legal, health and warranty consequences that may be incurred.
1977 Winchester model 70 7mm
I bought my father's gun back after selling it 18 years ago and first time at the range I knew the trigger was stiff!
Buddy told me about mcarbo so I ordered one.
Shipping was quick and I got it today!
Took out the old trigger spring and lock nuts that had the trigger weight sitting around 6.5#...
Mcarbo spring it is now at 2.75#!!!
Money saver
Easy installation brought my trigger from 5 lb 3 oz down the 3lbs 7 oz. Which is light even on a hunting rifle for me .. A fraction of the cost of a aftermarket trigger …..
Post 64 model 70 spring
Easy install fast shipping
Installation
The review is for fitment and installation.
Removal of existing and replacement with the MCarbo spring is a fast and simple process.
Replacement spring slides in place very easily.
Trigger feels cleaner, but I have yet to fire it so cannot attest to the specific trigger pull weight reduction.
For the spring kit price there is very little risk so a slight improvement is worth the cost
Winchester model 70 trigger spring
This spring was easy to install and delivered a crisp 2 pound setting.
Winchester Model 70 - Trigger Spring replacement
Amazing results and easy installation. Works as advertised, factory trigger pull was over 5 pounds. M-Carbo spring installation resulted in less than 2 pound pull, crisp break with no creep.
Winchester Model 70 - Trigger Spring replacement
Amazing results and easy installation. Works as advertised, factory trigger pull was over 5 pounds. M-Carbo spring installation resulted in less than 2 pound pull, crisp break with no creep.
Amazing Game Changer
This spring took my 5.5 pound to 2.5 pounds on my early 90s Model 70 Stainless Classic. The instructional video was clear and the result was perfect right down to the over travel. The trigger is smooth and crisp with a clean break at the wal. Don't try and mess with the factory "adjustment" get this spring!
Will this work on a Montana rifle 1999? If so which spring?
The Winchester Model 70 Trigger Spring Kit is designed specifically for the Winchester Model 70 trigger mechanism, and while the Montana Rifle 1999 (MR-99) shares many similarities with the Model 70, there are some differences in the trigger assembly that may impact compatibility.
Compatibility:
Trigger Design Similarity: The Montana Rifle 1999 uses a trigger mechanism modeled after the Winchester Model 70, so in many cases, parts like springs may fit physically. However, the performance, such as pull weight reduction, may not be identical due to differences in machining tolerances and design details.
Recommended Spring:
If attempting to use the M*CARBO Winchester Model 70 Trigger Spring Kit, the lighter spring option in the kit (intended to reduce trigger pull weight) is most likely to work. However, this is not guaranteed to perform as intended in the MR-99 without adjustments.
Considerations:
Safety: Even if the spring physically fits, always verify the trigger's function, including sear engagement and safety mechanisms, before use. Improper tension or engagement could lead to unsafe conditions, such as a failure to hold the sear.
Testing: After installation, test the rifle with dummy rounds to ensure proper trigger function under realistic conditions.
Answered by
Kenneth G /
December 30, 2024 12:47 PM
Si può montare sul Winchester xpr del 2022 ?
Il Kit Molla di Scatto per Winchester Model 70 non è compatibile con il Winchester XPR (2022). Sebbene entrambi i modelli siano prodotti da Winchester, il meccanismo di scatto dell'XPR è completamente diverso rispetto al Model 70, essendo progettato per un'azione moderna e un gruppo scatto proprietario.
Differenze principali:
Meccanismo di scatto: Il Winchester XPR utilizza un gruppo scatto "MOA Trigger System", che è differente dal sistema del Model 70.
Molle specifiche: Il kit molla per il Model 70 è stato progettato esclusivamente per le tolleranze e la geometria del meccanismo del Model 70, e non funzionerà correttamente nell'XPR.
Soluzioni per il Winchester XPR:
Se stai cercando di ridurre il peso di scatto o migliorare la performance del tuo XPR, potresti:
Controllare se esistono kit aftermarket progettati specificamente per l'XPR.
Consultare un armaiolo qualificato per modifiche personalizzate.
Se desideri consigli su prodotti alternativi o istruzioni su come migliorare il tuo scatto, fammi sapere! 😊
Answered by
Kenneth G /
December 30, 2024 12:50 PM
Will the spring work on Model 70 XTR Featherweight rifle?
Yes, the Winchester Model 70 Trigger Spring Kit is compatible with the Winchester Model 70 XTR Featherweight rifle. The XTR Featherweight is part of the Model 70 family and uses a trigger mechanism that is compatible with the M*CARBO kit.
Key Points:
Compatibility:
The XTR Featherweight maintains the same general trigger design as other Model 70 rifles, making the M*CARBO trigger spring kit a suitable upgrade.
Spring Selection:
Use the lighter spring in the kit to reduce trigger pull weight while ensuring the safety and reliability of the trigger mechanism.
Testing:
After installation, thoroughly test the trigger for proper engagement and safety, ensuring that it functions as expected under various conditions.
Answered by
Kenneth G /
December 30, 2024 12:52 PM
Will this spring kit fit the, short action, "Pre-64" Model 70?
Yes, any Model 70 before 2008 with the original style trigger.
Answered by
357_SS /
August 13, 2023 2:37 PM
Will this work in a Winchester 670? Budget version of the model 70.
How do I know if my gun is before 2008
Take a look at the infographic on the Description. The serial numbers are associated at the end of the year of production. If your serial number is in the range of the years Before 2008 or after 2008 you can see it from there.
This spring kit will work on a fetherweight ?
Functions in all Winchester Model 70 calibers and variations over the years.
Will this trigger kit work on the xpr rifles too? I assume they would seeing as how they also use the moa trigger system
I just installed it on an XPR. It is tricky to install because the trigger housing is not removable but it works. Trigger down to right over 3# from right under 5#.
Answered by
/
September 15, 2022 10:32 PM
We haven't tested the spring on that firearm, we cant say if it will work.
